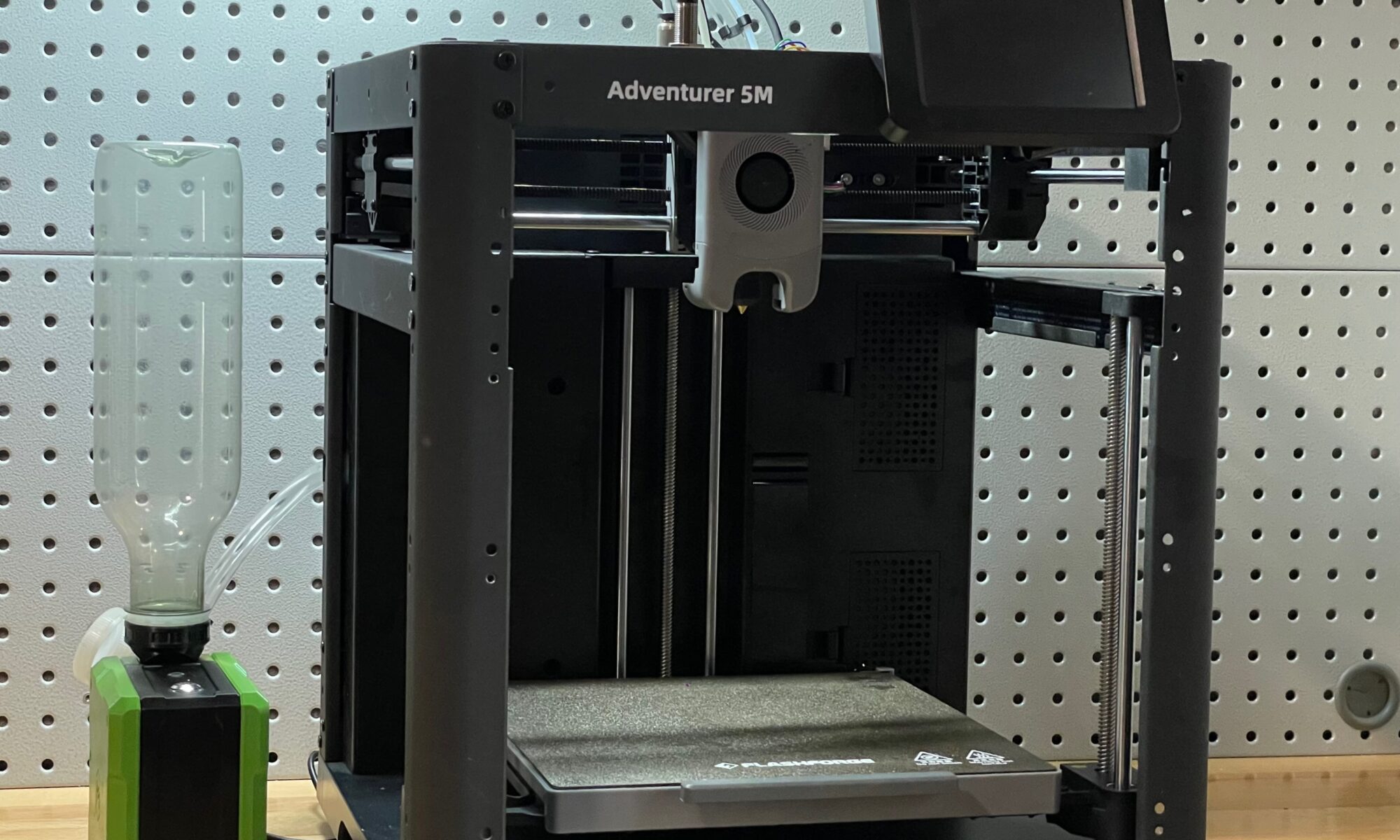

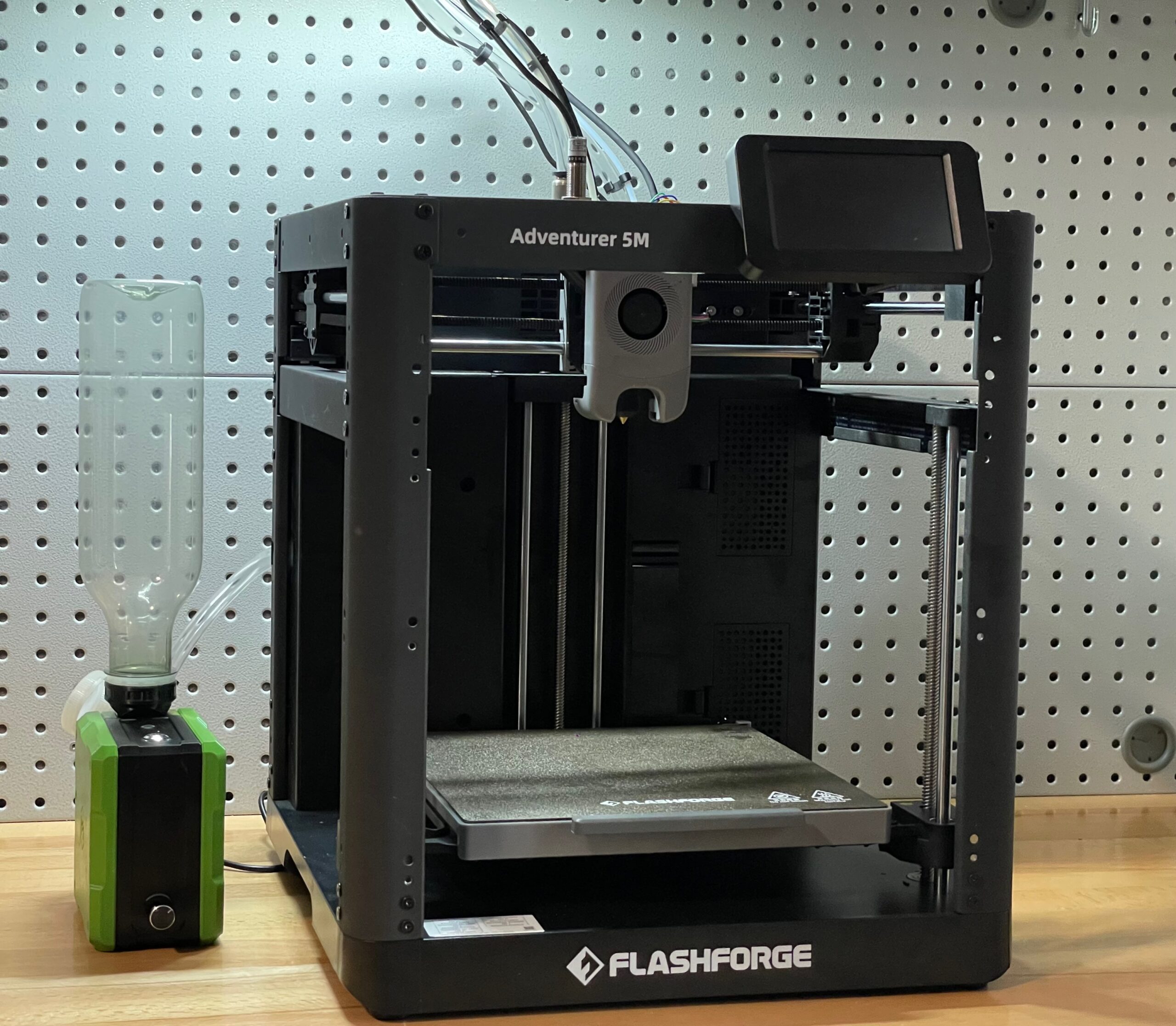

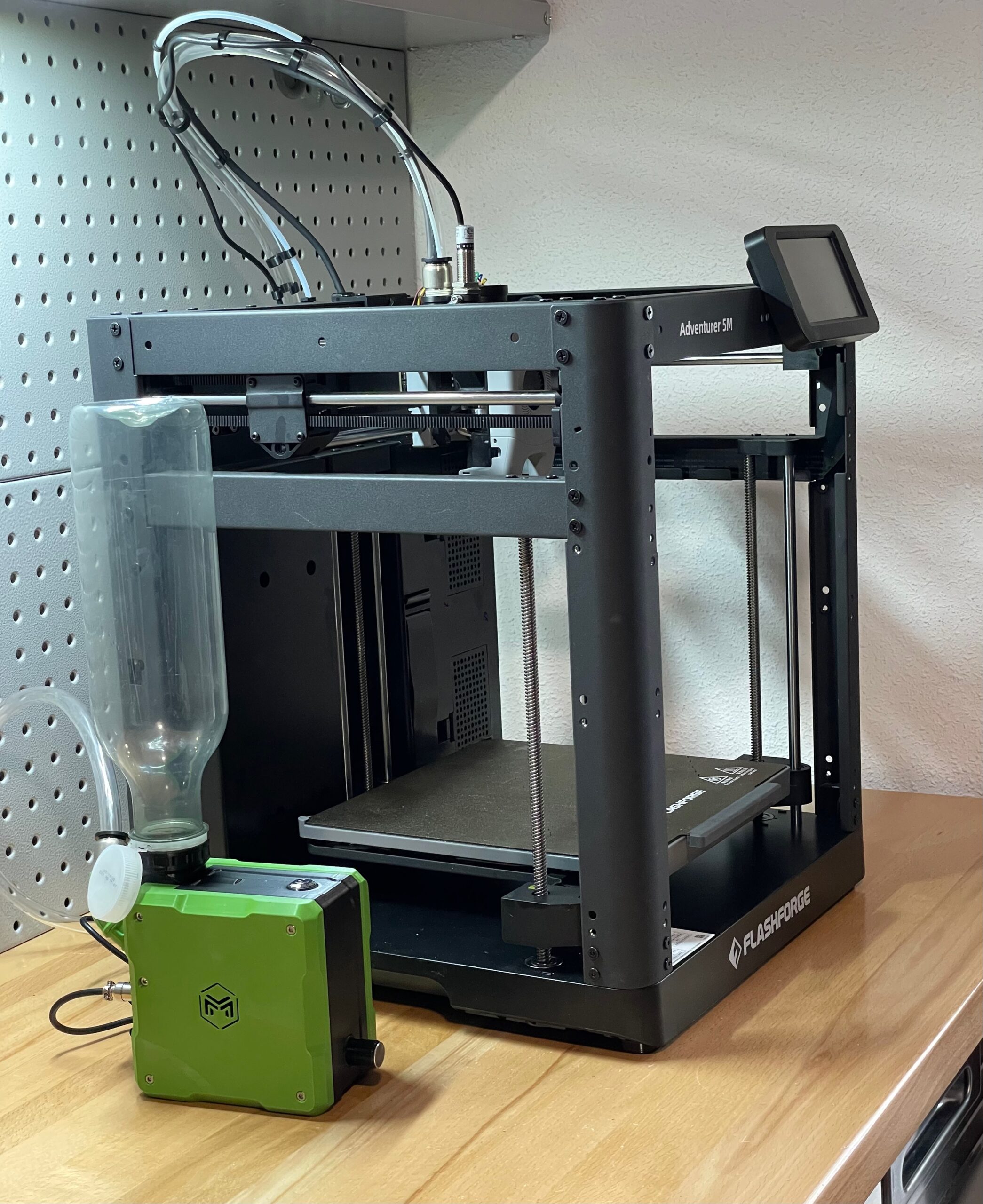

Combo AD5M + V5 Pilot + Feed-Lite

Category:

Description

How to MAKE yours

  1. Get  V5 Pilot and Feedstock lite

“V5-Pilot” Pellet Extruder V5-M8-PRO-HS

FEEDSTOCK lite

2. Get FlashForge AD5M and unlock it!

Adventurer5M-KlipperMod-v00.05-beta-klipperscreen.tgz

3. Rewrite next files.

ad5m cfg

rewrite next macros file

macros.cfg

Use this start g-code command on orca slic3r

START_PRINT BED_TEMP={bed_temperature_initial_layer[current_extruder]} EXTRUDER_TEMP={nozzle_temperature_initial_layer[current_extruder]}

Use this end g-code command on orca slic3r

END_PRINT

4. Print next special parts

AD5M-pilot-stls

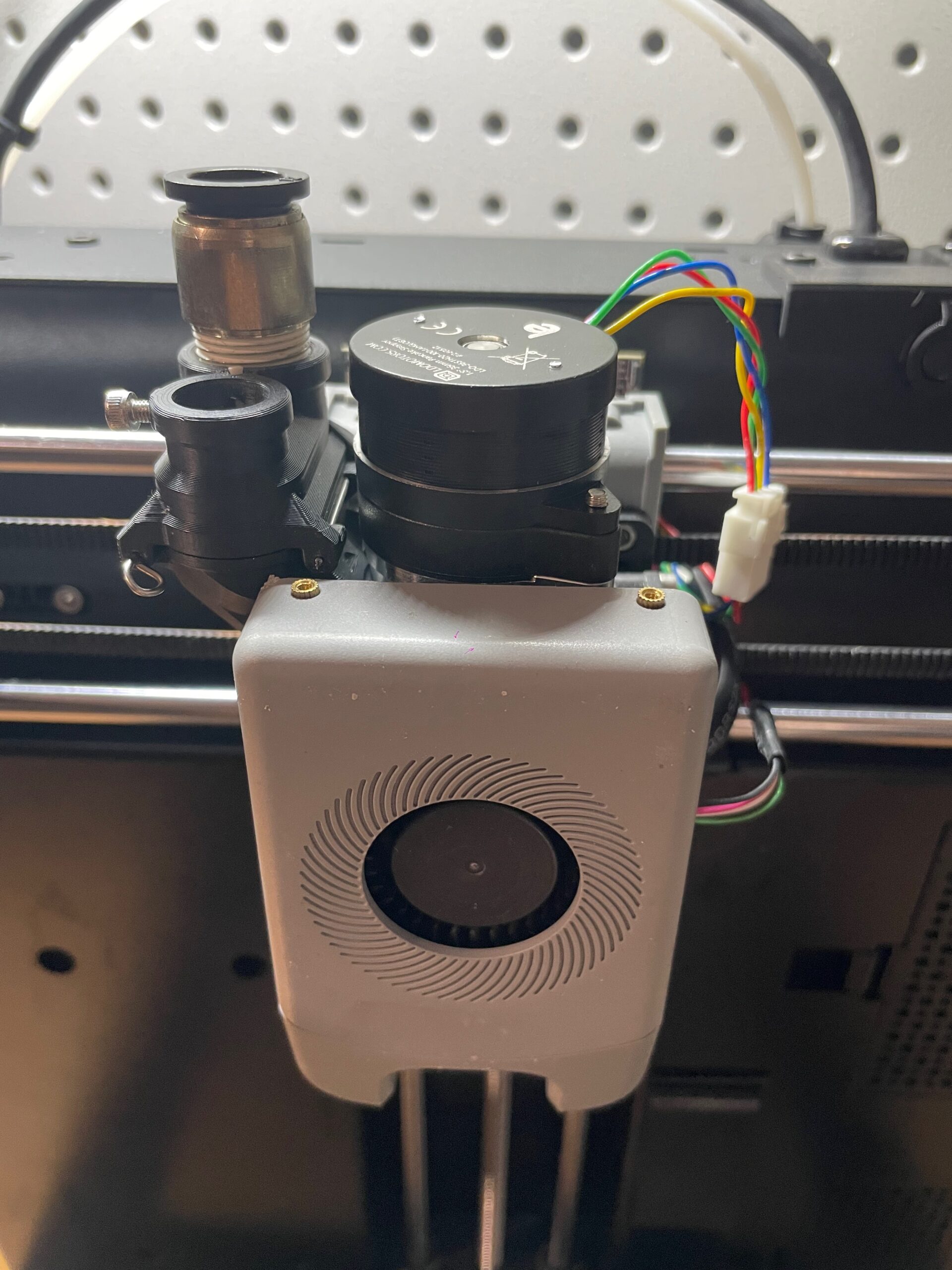

5. Assemble it

Wiring heater and thermistor JST 2.5 4pin

Extend Motor  wires 30mm JST 2.54 4pin

Extend layer fan  wires 30mm JST 1.25 4pin

reorient toolboard
set new x y endstops magnets ø6x3mm
